The vacuum cleaner is equipped with Boogie/Triple BPV axles with hydraulic wheel alignment and a wheelbase of 1850mm. It has a SAMSON TM 1600 liquid ring pump, belt-driven with 1:2 gearing for reduced engine revolutions, and hydraulic pressure/suction switching. There is a 6″ hydraulically operated shovel valve in the rear hatch with additional valve flange, as well as mounted 6″ flanges for manual valve on both sides of the vacuum cleaner.
The level indicator on the front shows the contents of the sludge tank and there is a galvanized sludge container. It is fitted with LED lights as required by law, hydraulic brakes, 1 rotating beacon (flash) and wide load marking.
The sludge extractor always comes with a joystick mounted in the tractor to operate all functions.
The machine is sandblasted inside and out, painted with epoxy on the inside and two-component paint on the outside, as well as galvanized loose parts. It has a stylish color combination of SAMSON green and silver-grey rims.
12,000/15,000/20,000 liters
Samson Agrolize is a powerful and reliable machine with Boogie BPV 23 Tons axles and hydraulic wheel alignment. It is equipped with Samson TM 1600 liquid ring pump, hydraulic pressure/suction switching, and 6″ hydraulically operated spade valve.
The machine has level indicators, galvanized sludge tank, sandblasted finish, epoxy interior paint, mandatory LED lights, hydraulic brakes and wide load marking. Fitted with 10″ loading tower and joystick for easy tractor installation.
GS II BOOGIE
Brake system
Hydraulic brakes
Air brakes, 2-circuit, without parking brake. Standard with manual brake force regulator.
Vakkum pump - liquid ring pump
Samson liquid ring pump TM 1600 (1500m³/h - approx. 25000L/min)
Samson liquid ring pump TM 2500, (2400m³/h - approx. 40,000L/min)
Transmission
Mechanical drive for vacuum pump - Belt drive
Hydraulic drive for vacuum pump
Camera kits
2 pcs. surveillance camera 7" color monitor, 1 pc. on crane, 1 piece on the back
Tank
GSP - Stamp in tank for push-off v. unloading (Requires air from tractor or hydraulically driven compressor), Standard manual side-hinged tailgate
Hydraulic top-hinged tailgate
Wheel mounting
Alliance 710/50 R 26.5 A885
Alliance 750/55 R 26.5 A388
Alliance 710/50 R 26.5 VF389
Wheel steering
Hydraulic upright and lock of boogie
Electronic wheel steering
Loading tower

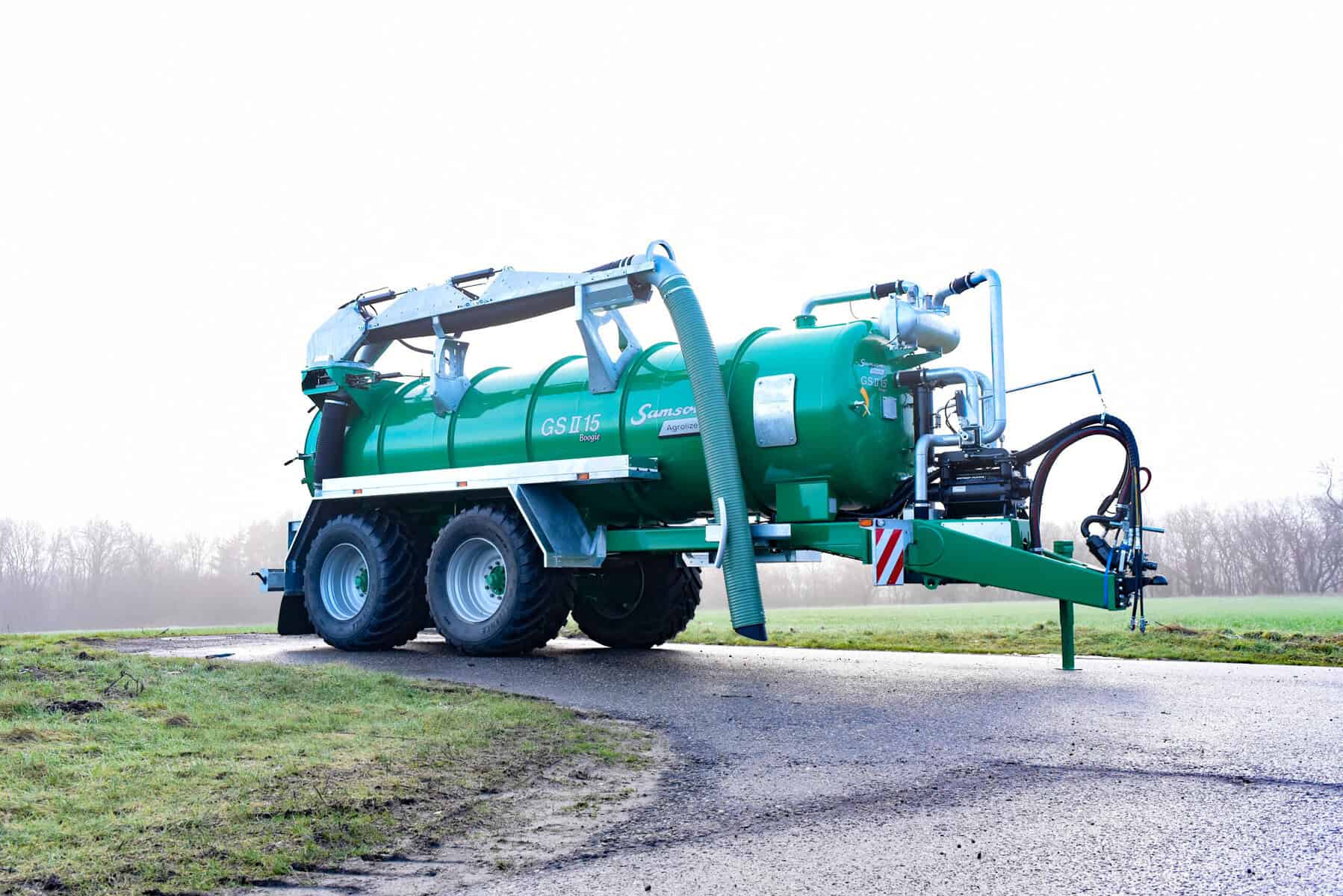

10" loading tower with 2 articulated joints and parking on both sides of the barrel. Inlet led to bottom inside the barrel
Side-mounted loading tower (internal piping to bottom)
Control panel for all functions, with 2 joysticks
Remote control for all functions
Factory-fitted equipment
3" vertical roller 30m. incl. remote control (Telecrane)
3 1/2" vertical roller 27m. incl. remote control (Telecrane)
4" vertical roller approx. 15m. incl. remote control (Telecrane) Requires TM 1600 pump
Hydraulic outrigger
Factory fitted accessories
Advertising production and mounting on signs (Vertical roller)
Oil-fired hot air blower for toolboxes. 1 Select per page on the machine.
Hydraulic outrigger
Work light
Floodlight kit (2 LED front, 2 LED rear, 2 LED bumper and 1 LED at hose reel)
Marker lights with flash (8 side and 2 rear and 2 winding roll)
Painting
Other RAL color
Clear lacquer
SAMSON is your reliable partner when it comes to efficient waste management and cleaning. Our combined sludge extractors/flushers are designed to handle a wide range of tasks, from sewer maintenance to sucking up drilling mud during underground drilling.
We offer a comprehensive range of machines to suit any job. From smaller units mounted on single axles to advanced trolleys on boogie undercarriages with air suspension, we have the solution for your needs.
With our flexible tank separators, you can easily adjust the ratio of clean water to sludge according to the demands of the job. And with the wireless two-way remote control, including the advanced Vario II control, you get total control and monitoring right in your hands.
